Saison 2025

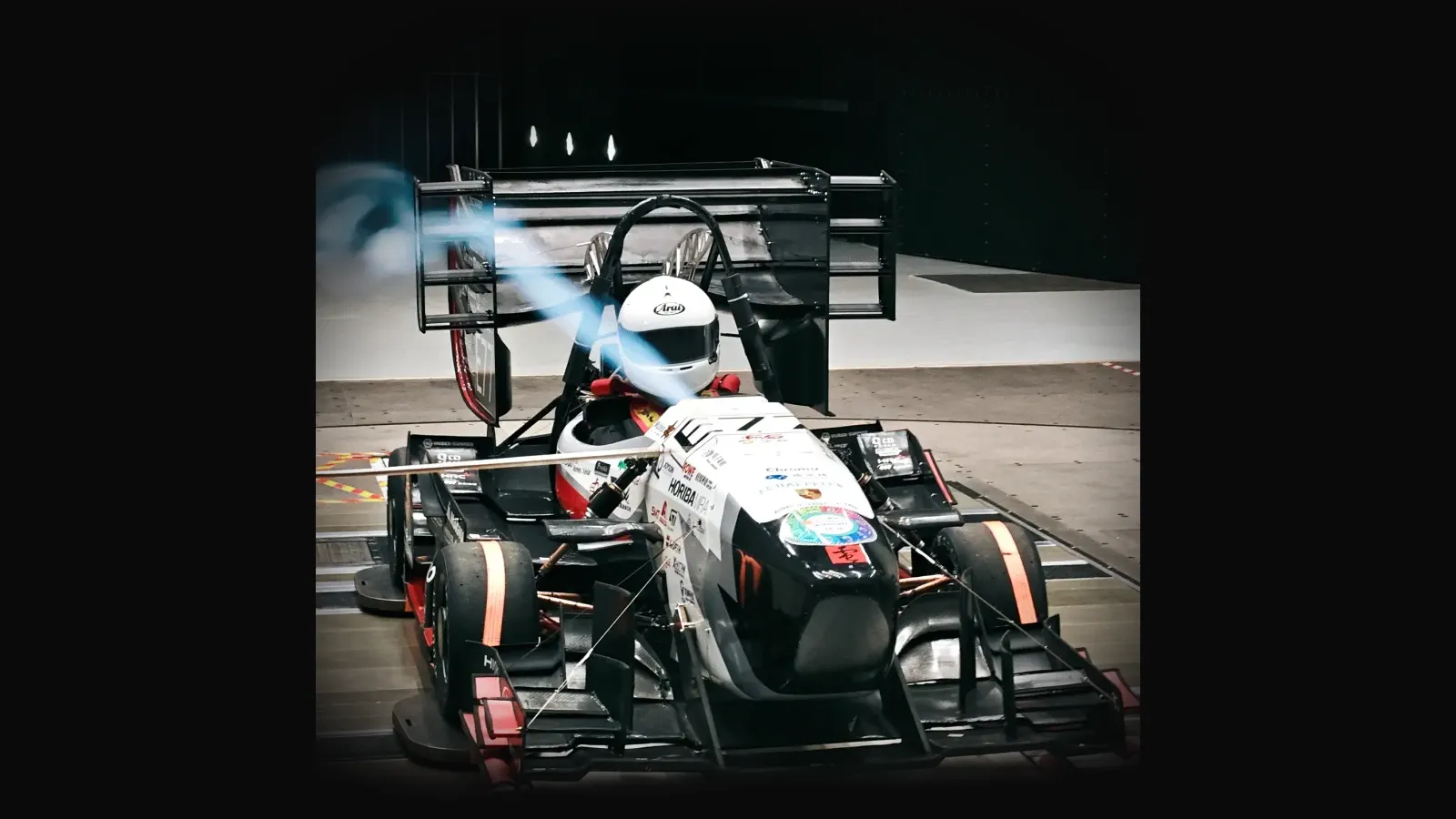

DRe25
Unser bisher fortschrittlichstes Fahrzeug — leichter, schneller und smarter als je zuvor.
144 kW
Spitzenleistung
216 kg
Gesamtgewicht
4WD
Antrieb
Design-Highlights
Full Distributed 4WD
Four wheel-side PMSM motors deliver 144 kW combined peak power, each paired with a planetary gearbox integrated into the upright for a compact wheel package.
High-Voltage Accumulator
Student-designed and manufactured 7.09 kWh / 596.4 V battery pack with an in-house BMS — the same concept that won the Best Accumulator Design award at FSEC 2020.
Driverless Variant — DRd25
Our autonomous sister car runs at 200 Hz control frame rate with sub-200 ms system delay and 14 cm positioning accuracy, enabling fully unmanned dynamic events.
Best System Design — FSEC 2025
DRe25 took home Best System Design Award and Best Manager Award at FSEC 2025 on our way to 2nd overall — breaking a multi-year podium dry spell.
Technische Daten
Antrieb
| Layout | Distributed 4-Wheel-Drive |
| Motors | 4× wheel-side PMSM |
| Peak Power (per motor) | 36 kW |
| Peak Power (total) | 144 kW |
| Transmission | Wheel-side planetary gearbox |
Chassis
| Overall Dimensions | 3070 × 1415 × 1180 mm |
| Wheelbase | 1530 mm |
| Front / Rear Track | 1200 / 1200 mm |
| Ground Clearance | 45 mm |
| Weight Distribution | 50 : 50 (F : R) |
Gewicht
| Total Weight | 216 kg |
Batterie
| Capacity | 7.09 kWh |
| Maximum Voltage | 596.4 V |
| BMS | In-house distributed BMS |
